Security Booths (NX-Doors)

Το Ηλεκτρονικό Σύστημα NX-Doors εγκαθίσταται και ξεχωριστά



Περιγραφή Συστήματος

The Security Chamber is a system of access control and deterrence of criminal acts (robberies, terrorist acts etc.) and aims to prevent, deter and prevent any criminal activity.

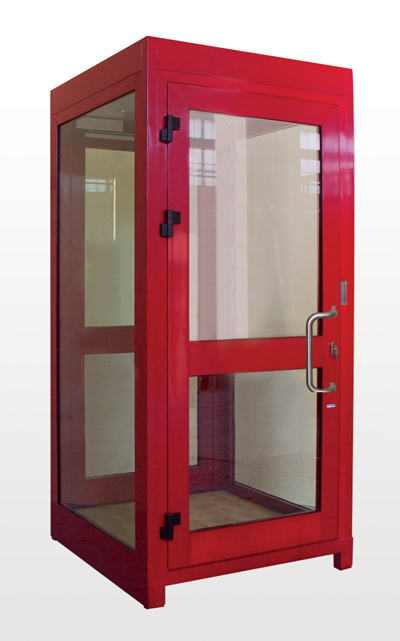

Consists of 2 or 4 aluminum security doors (single or double chamber respectively) depending on the input dimensions and customer requirements, which can operate simultaneously with their electronic system as input-output, either independently as input or output only.



Technical Specifications

Direction: One-way or two-way (Entry, Exit, Entry-Exit)

Mechanical:

Skeleton - Aluminum profile anti-vandal or bulletproof (WK2, WK3, WK4 etc) with corresponding certification, reinforced columns, security doors with sliding aluminum profile profiles heavy-duty with hidden mounting screws to prevent tampering, hydraulic adjustable return mechanism, aluminum cable guide for future crossing of additional wiring

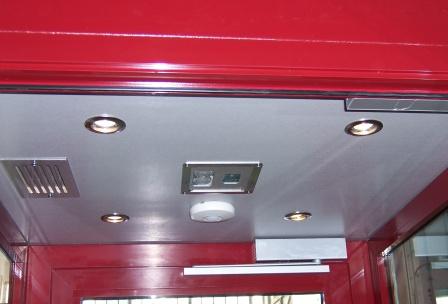

Ceiling - Roof with system door, PL lamp and ventilation grille. Crystals - Natural Durable Attack Glasses with Anti-Vandal Class (P6B, P7B, P8B) and Bulletproof (BR2S, B3S, MAGNUM etc), with corresponding certifications

Online: All online is certified by an accredited organization and includes:

- Electronic Cabin System, Certified

- Electric lock, supervised, certified for over 1000 openings per day, low voltage with silent operation

- 4.7 "color LCD screen, built in INOX for display instructions inside the cabin (Optional)

- Speakerphone for voicemail playback

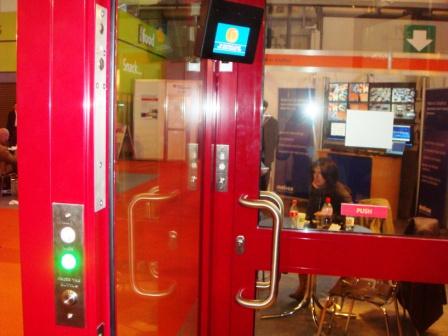

- INOX Input-Output Button, anti-vandal type

- High brightness LED with special refractive lens for clarity in sunlight

- Release Button, Adjustable for Immediate Release of Electric Locks, Green

- RS-232 and RS-485 Serial Outputs for connecting the system to peripheral systems (printers etc)

Colors: Electrostatic paint based on RAL color selection.

Function: Electronically controlled passage in both directions. The mode of operation of the chamber is customized according to the needs of the client and the optional accessories incorporated in the chamber (eg FaceDetection, Metal Detector, One Person Presence Detector, etc.) Automatically

- Pressing the inlet button releases the outer door and allows you to enter the safety chamber with a simple push. After closing the outer door via the reset mechanism and pressing the inner door knob, the inner door is released after a delay (0 ~ 5 sec). Entrance is now permitted by simply pushing the inner door. All of the above actions are supported and facilitated by visual and audio instructions from the speaker and LCD screen. The reverse procedure applies at exit. Semi-automatic

- Input and output are only achieved at the operator's command, which is within the protected area, or alternatively at the operator's command input and automatic output. Manual

- Free entry and exit are permitted only at the operator's request and for freight cases.

Protection : Throughout the normal operation of the chamber, if a suspect is detected inside the chamber either by the operator via a console or controller, or by optional equipment (FaceDetection, Metal Detector, One Person Presence Detector etc) then immediately locks the inner door and unlocks the outer door informing it with the appropriate audio and visual message.

Weight: from 500 to 1200Kg depending on the chambers.

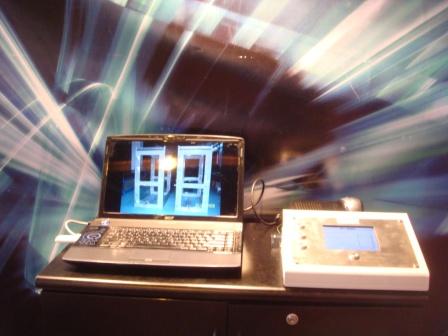

Controls : TFT screen control console for real-time screening (RealTime) and informing the employee of trapping, fire detection, receiving alarm messages from the self-diagnostic system.
